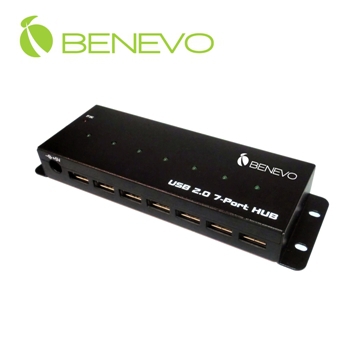

BENEVO UltraUSB 工業型 7埠USB2.0集線器，每埠均可供應500mA電量

BENEVO UltraUSB Industrial 7-Port USB2.0 HUB

產品介紹

這一款「工業等級 USB 2.0 集線器」，可將 1 個 USB 埠擴充為 7 個 USB 埠。採用工業等級高速資料傳輸設計，完全提供 USB 2.0 標準，提供每埠高達 480Mbps 的高速資料傳輸，即使是高負載的應用也能順利執行。完全符合 USB 隨插即用的功能，每埠均提供 500 mA 的電量，確保連接的 USB 週邊設備能夠正常運作，且可從休眠狀態快速轉換至高速運作。採用外部供電，能與所有 USB 週邊設備廣泛相容。

產品特色

◆ USB 2.0 集線器，提供 7 個 USB 高速傳輸埠。
◆ 採MTT技術(Multiple Transaction Translator)與設計確保同步高速與穩定電量
◆ 每埠均提供500mA電量，確保外接裝置穩定連結與運作
◆ 支援需要高供電速率之行動硬碟裝置。
◆ 具備自動偵測 ( Auto-Sensing ) 功能。
◆ 堅固與具備遮蔽性的金屬外殼設計，可以壁掛安裝。
◆ 每埠均具備電源過載保護裝置。
◆ 每埠均具備獨立狀態燈號。
◆ 完全相容於 USB 2.0 EHCI 及 USB 1.1 UHCI/OHCI 規範。
◆ 隨插即用設計，免安裝任何軟體或驅動程式，無系統相容性問題。
◆ 支援所有高速 ( 480Mbps )、全速 ( 12Mbps ) 與慢速 ( 1.5Mbps ) 的 USB 週邊設備。
◆ 支援四USB2.0的 Windows, Mac OS 8.6, Linux 2.4.20 版本以上作業系統。

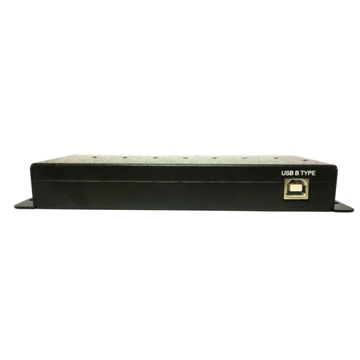

◆ 連接頭：一端 USB Type B 母接頭x1 (Upstream) / 一端 USB Type A 母接頭x7 (Downstream)。
◆ 使用外接型 DC5V, 3.5A變壓器，供應穩定電量。
◆ 台灣設計製造，品質保證。

UBS2.0集線器核心與MTT多同步轉譯規格說明

◆ Low power consumption 低耗電
    □ 155 mA when seven downstream facing ports enabled in High-Speed mode;
    □ 66 mA when one downstream facing port enabled in High-Speed mode;
◆ Fully compliant with Universal Serial Bus Specification Revision 2.0 (USB 2.0) 高相容性;
    □ Upstream facing port supports High-Speed (480MHz) and Full-Speed (12MHz) modes;
    □ 7 downstream facing ports support High-Speed (480MHz), Full-Speed (12MHz), and Low-Speed (1.5MHz) modes;
◆ Integrated USB 2.0 Transceivers;
◆ Integrated upstream 1.5KΩ pull-up, downstream 15KΩ pull-down, and serial resisters;
◆ Integrated 5V to 3.3V and 1.8V regulator.
◆ Integrated Power-On-Reset circuit;
◆ Integrated 12MHz Oscillator with feedback resister and crystal load capacitor;
◆ Integrated 12MHz-to-480MHz Phase Lock Loop (PLL);
◆ Multiple Transaction Translator (MTT/多同步轉譯) –
    □ One TT for each downstream port;
    □ Alternate Interface 0 for Single-TT, and Alternate Interface 1 for Multiple-TT;
    □ Each TT could handle 64 periodic Start-Split transactions, 32 periodic Complete-Split transactions, and 6 none-periodic transactions;

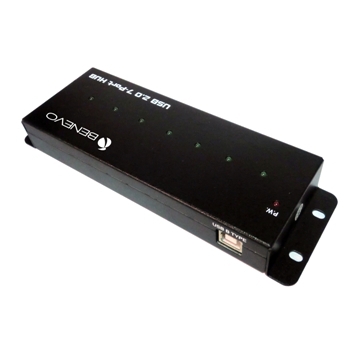

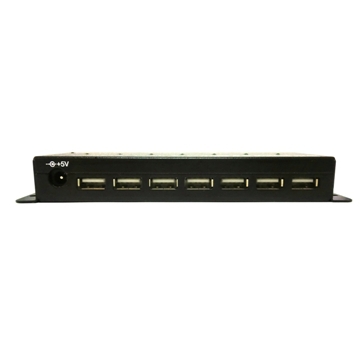

產品圖檔

主要外觀尺寸

◆ 尺寸：165 x 54 x 22 mm。
◆ 本體重量：260g。
◆ 操作溫度：0°C ~ 70°C。
◆ 儲存溫度：-55°C ~ 150°C。


Major Specification of MTT USB2.0 Chipset:

1. Low power consumption
     □ 155 mA when seven downstream facing ports enabled in High-Speed mode;
     □ 66 mA when one downstream facing port enabled in High-Speed mode;
2. Fully compliant with Universal Serial Bus Specification Revision 2.0 (USB 2.0);
     □ Upstream facing port supports High-Speed (480MHz) and Full-Speed(12MHz) modes;
     □ 7 downstream facing ports support High-Speed (480MHz), Full-Speed(12MHz), and Low-Speed (1.5MHz)modes;
3. Integrated USB 2.0 Transceivers;
4. Integrated upstream 1.5KΩ pull-up, downstream 15KΩ pull-down, and serial resisters;
5. Integrated 5V to 3.3V and 1.8V regulator.
6. Integrated Power-On-Reset circuit;
7. Integrated 12MHz Oscillator with feedback resister and crystal load capacitor;
8. Integrated 12MHz-to-480MHz Phase Lock Loop (PLL);
9. Multiple Transaction Translator (MTT) –
     □ One TT for each downstream port;
     □ Alternate Interface 0 for Single-TT, and Alternate Interface 1 for Multiple-TT;
     □ Each TT could handle 64 periodic Start-Split transactions, 32 periodic Complete-Split transactions,
        and 6 none-periodic transactions;
10. Support Self-Powered Mode only;
11. Comprehensive status indicators support:
     □ Standard downstream port status indicators (Green and Amber LED control for each downstream port);
     □ Hub Active/Suspend indicator LED;
12. Support Microsoft Windows 98SE/ME, 2000, XP, Vista and above;
13. Support Mac OS 8.6 and above;
14. Support Linux kernel 2.4.20 and above.

包裝內容

1. 工業型7埠USB2.0集線器 x1

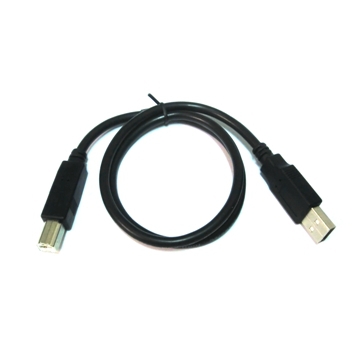

2. USB2.0連接線(60cm) x1

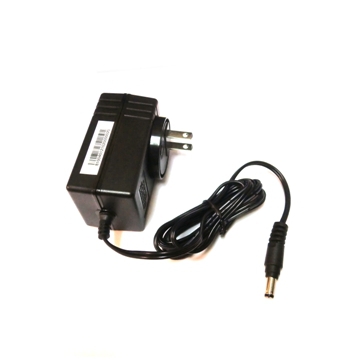

3. 專用電源變壓器(3.5A) x1
