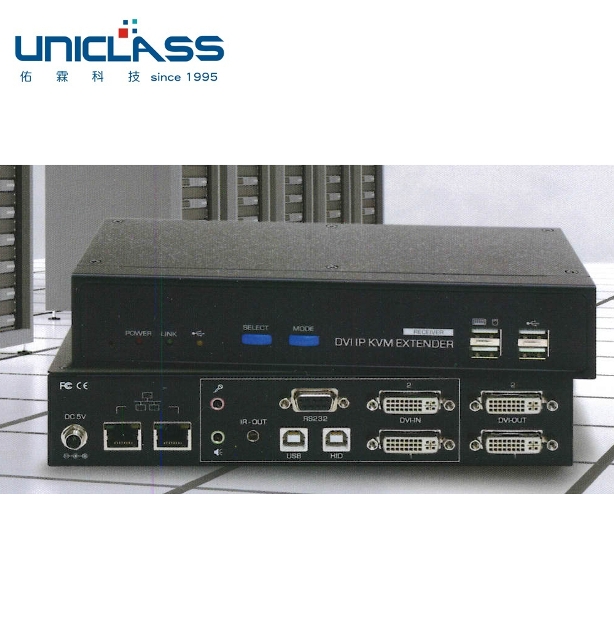

【UNICLASS】DX230 內網矩陣型 DVI雙螢幕 USB2.0 Audio KVM延伸器
UNICLASS DX-230-TxRx DVI dual minitor + USB 2.0 + USB-KM + Audio
Virtual Matrix KVM over IP Extender-Set (Tx and Rx)
商品介紹
The UNICLASS DX230 DVI Virtual Matrix KVM over IP allows extension of DVI dual monitor, USB, 2-ch analog audio, RS232 and IR over a Gigabit Local Area Network. The units of transmitter and receiver can be automatically a unique IP address, and connected to the same network is supported.
Multiple computers and other IP enabled devices can be connected to these units with the built-in Ethernet switch and 2 additional RJ-45 Ethernet ports. Multiple receivers can be simultaneously connected to the sender unit within the network to create a virtual cross point matrix of up to 16 senders and multiple receivers up to a theoretical limit of just over 65,000 units, depending on the network bandwidth and the number of ports of the network switch.
功能特點
◆ 雙DVI螢幕連結設計
◆ 傳送端具DVI輸出，可監看與操作
◆ 支援最高解析達1920x1200@60Hz
◆ 超低延遲，小於每秒1畫格
◆ 支援未壓縮與無損的音訊傳輸
◆ 透過內網IP架構傳輸USB2.0
◆ 可控制KVM鍵鼠操作與熱鍵控制
◆ 多通道聲音格式
◆ 整合RS232連接埠，提供遠端控制
◆ 虛擬矩陣控制選單，可在Gigalan內網中輕鬆選擇與控制
Features
◆ DVI OUT loopback port on Transmitter
◆ Supports high quality video streaming up to 1920x1200 @60HZ
◆ Low latency time <1 frame/sec.
◆ Supports uncompressed and lossiess
◆ USB 2.0 over IP
◆ HID over IP for KVM appication: USB HID (2nd USB cable to source) for possibility to control KVM-Switches by hotkey
◆ multichannel audio formats
◆ Integrated RS232 port for distributed remote control
◆ Virtual Matrix (OSD Menu) to select and control very easy a Matrix KVM switching in Gigabit network without separate KVM-Switch
◆ Supports dual monitor application

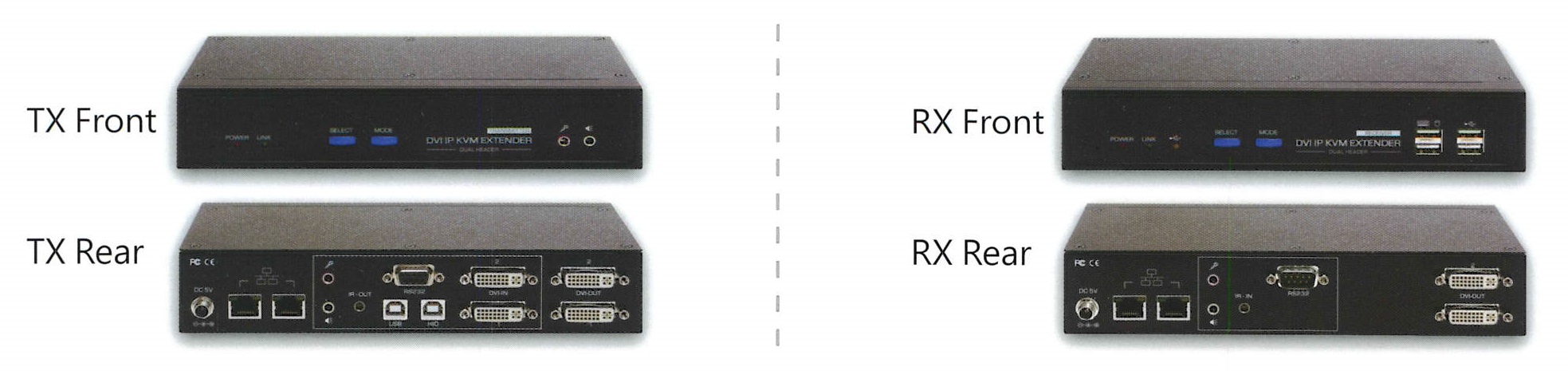

傳送器Tx與接收器Rx介面

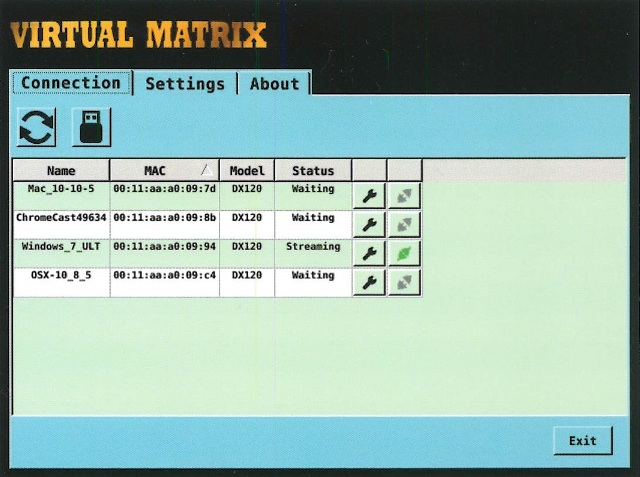

切換控制選單

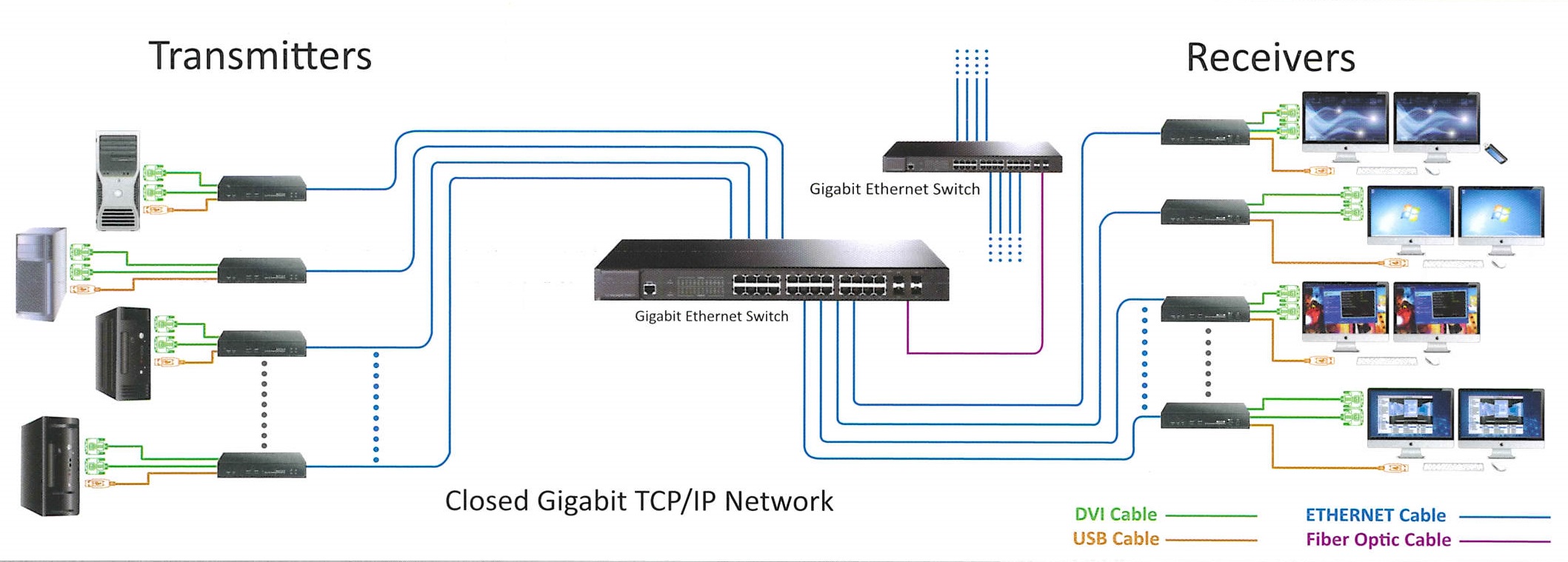

設備連接示意圖
|
