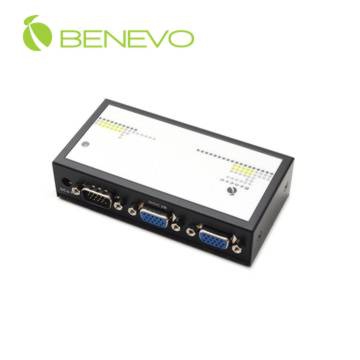

UltraVideo 2-Port VGA Splitter (450MHz)

Model：BVS142

VGA splitter can broadcast one VGA source to multiple video outputs. The common usage of VGA splitter is for public exhibits, video conference, and multimedia presentations, etc.


Introduction

VGA splitter can broadcast one VGA source to multiple video outputs. The common usage of VGA splitter is for public exhibits, video conference, and multimedia presentations, etc. VGA source can be shared by multiple devices such as Monitors, LCD TV, or projector. At 450MHz bandwidth, VGA signal resolution supports up to 2048 x 1536 and Distance up to 65m.

Features

♦ One VGA source to multiple VGA output
♦ Support 2048 x 1536 resolution and up to 65 meters
♦ Cascading capacity to multiply VGA broadcast
♦ Magnetic pad to simplify installation



Model / Order No. BVS142 BVS144 BVS148
Model Name 2-Port VGA Splitter 4-Port VGA Splitter 8-Port VGA Splitter
PC Cable VGA Cable x 1
Input D-sub15 Male x 1
Output D-sub 15 Female x 2 D-sub 15 Female x 4 D-sub 15 Female x 8
Signal Display VGA, SVGA, XGA, Multi-sync, TFT LCD
Casing Metal
LED Display Indicate Power and Signal Status
Resolution at Max Distance 450 MHz (Resolution up to 2048 x 1536 and Distance up to 65m)
Power Adaptor DV9V, 500mA DV9V, 500mA DV9V, 500mA
Dimension 113 x 62 x 29 193 x 84 x 26 193 x 84 x 38
(L x W x H in mm)
Operating Temp. 0° C ~50° C
Storage Temp. 0° C ~60° C
Humidity 25%~70% Non-Condensing
